BT-30 Clamping force gauge

Model
BT-30 Clamping force gauge
BT-30 Clamping force gauge

Hydraulic Machinery Structure, High Stability

Instruction
  1. Confirmed the pull stud of clamping force gauge can match spindle gripper.
  2. Clean the spindle taper and clamping force gauge before holding.
  3. The measuring range is listed as below :
    Model BT-30 BT-40 BT-50
    Measuring range 0~50 kg/cm² 0~150 kg/cm² 0~250 kg/cm²

    Conversion：1 kg/cm² = 10kg = 100 N

    Reference clamping force range：
    BT-30：200~500kg
    BT-40：500~1100kg
    BT-50：1500~2200kg
    BT-60：3500~5000kg

  4. o make sure the accuracy of measuring value, clamping force gauge should be used under the pre-pull situation.

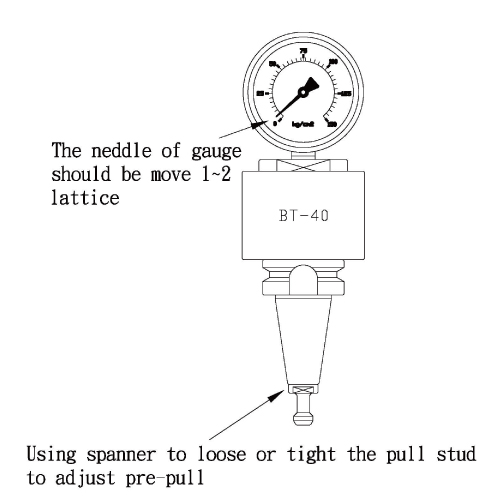

    Please see the photo to know how to adjust.
