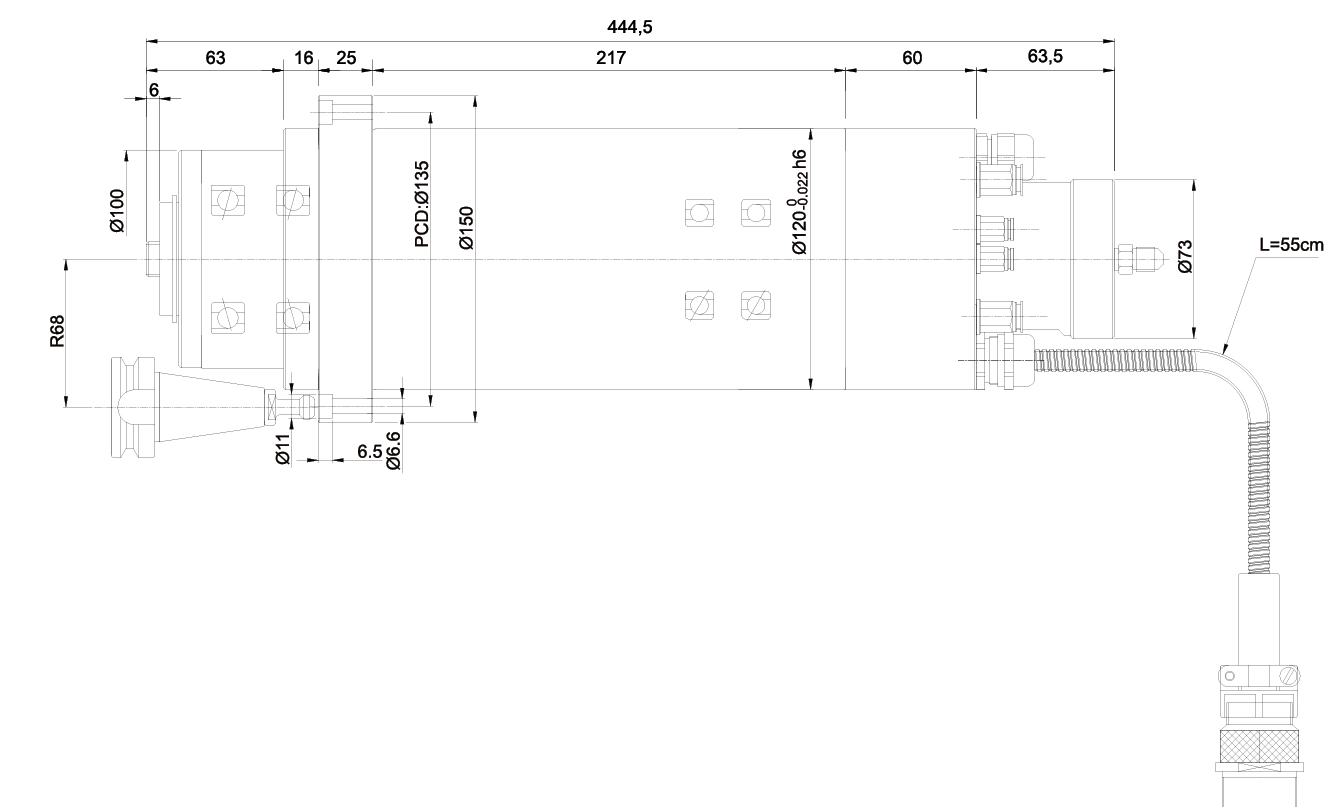

TH-120.01 (10kW) BT-30 30,000rpm
Product Information
| Type | TH-120.01 (400V) |
TH-120.02 (230V) |
|
|---|---|---|---|
| Spindle Ø | 120mm | ||
| Maximum Speed (Oil-Air) | 30,000rpm | ||
| Bore diameter of front bearings | 40mm | ||
| Rigidity | Axial (N/µm) |
90N/µm | |
| Radial (N/µm) |
120N/µm | ||
| Frequency Max. (Hz) | 1,200Hz | ||
| at speed | 17,600RPM | ||
| S1 kW | 10kW | ||
| S1 Current (A) | 30A | 52A | |
| S6-40% kW | 13kW | ||
| S6-40% Current (A) | 39A | 68A | |
| kW (Peak Power) | 25kW | ||
| S1 Torque (Nm) | 5.4Nm | ||
| S6-40% Torque (Nm) | 7.1Nm | ||
| Tool Interface | BT-30 BBT-30 |
||
| Spindle Cooling unit | Cooling capacity:3,000Kcal/hr (at25℃) Water cooling /Oil cooling |
||
| Spindle Weight | 27kg | ||
| Integral Encoder For Closed-Loop Control |
Option | ||
| Coolant Through Shaft (CTS) | Option | ||
| Tool Position Sensors | Proximity switches / Analog sensor |
||
| Front Bearing Temperature Sensor |
Standard | ||
Also available with grease lubrication.
This lubrication leads to speed reduction.
Compare Others Specifications
| Type | TH-120.01(400V) TH-120.02(230V) |
TH-150.01(380V) TH-150.02(220V) |
TH-170.05(400V) TH-170.02(230V) |
|||
|---|---|---|---|---|---|---|
| Spindle Ø | 120mm | 120mm | 150mm | 170mm | 170mm | |
| Maximum Speed (Oil-Air) Also available with grease lubrication. This lubrication leads to speed reduction. |
30,000rpm | 42,000rpm | 36,000rpm | 20,000rpm | 24,000rpm | |
| Bore diameter of front bearings | 40mm | 40mm | 50mm | 65mm | 65mm | |
| Rigidity | Axial (N/µm) |
90N/µm | 90N/µm | 130N/µm | 150N/µm | 150N/µm |
| Radial (N/µm) |
120N/µm | 120N/µm | 150N/µm | 200N/µm | 200N/µm | |
| Frequency Max. (Hz) | 1,200Hz | 1,400Hz | 1,200Hz | 667Hz | 800Hz | |
| at speed | 17,600rpm | 17,600rpm | 13,500rpm | 5,870rpm | 5,870rpm | |
| S1 kW | 10kW | 10kW | 15kW | 18kW | 18kW | |
| S6-40% kW | 13kW | 13kW | 20kW | 23.4kW | 23.4kW | |
| kW (Peak Power) | 25kW | 25kW | 50kW | 58kW | 58kW | |
| S1 Torque (Nm) | 5.4Nm | 5.4Nm | 10.6Nm | 29.3Nm | 29.3Nm | |
| S6-40% Torque (Nm) | 7.1Nm | 7.1Nm | 14.1Nm | 38.1Nm | 38.1Nm | |
| Tool Interface | BT-30 BBT-30 |
HSK-E40 HSK-F50 |
HSK-E50 HSK-F63 |
BT-40 BBT-40 |
HSK-A63 HSK-E63 |
|
| Spindle Cooling | Water cooling /Oil cooling | |||||
| Spindle Weight | 27kg | 27kg | 46kg | 63kg | 63kg | |
| Integral Encoder For Closed-Loop Control |
Option | Option | Option | Option | Option | |
| Coolant Through Shaft (CTS) | Option | Option | Option | Option | Option | |
| Tool Position Sensors | Proximity switches / Analog sensor | |||||
| Front Bearing Temperature Sensor |
Standard | Standard | Standard | Standard | Standard | |
