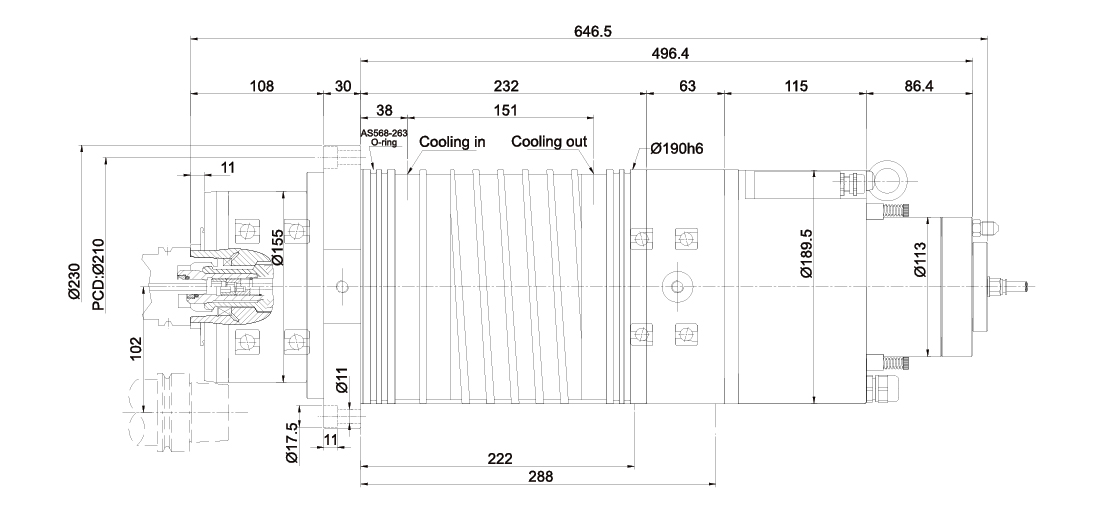

TH-190.05 (BiI112S/20000-B) HSK-A63/BBT-40 20,000rpm
Product Information
| Type | TH-190.05 | |
|---|---|---|
| FANUC BUILT-IN SPINDLE MOTOR |
BiI112S/20000-B | |
| Spindle Ø | 190mm | |
| Maximum Speed (Oil-Air) | 20,000rpm | |
| Bore diameter of front bearings | 70mm | |
| Rigidity | Axial (N/µm) |
180N/µm |
| Radial (N/µm) |
200N/µm | |
| ab Drehzahl | 3,200RPM | |
| S1 kW | 15kW | |
| S2/S3 kW | 18.5kW(S2/S3-10mim) | |
| S1 Torque (Nm) | 44.8Nm | |
| S2/S3 Torque (Nm) | 55.2Nm(S2-10mim) 63.1Nm(S3-10mim) |
|
| Tool Interface | HSK-A63 / BBT-40 HSK-C63 |
|
| Spindle Cooling | Cooling capacity:4,000Kcal/hr (at25℃) Water cooling /Oil cooling |
|
| Spindle Weight | 80kg | |
| Integral Encoder For Closed-Loop Control |
Standard | |
| Coolant Through Shaft (CTS) | Option | |
| Tool Position Sensors | Proximity switches / Analog sensor |
|
| Front Bearing Temperature Sensor |
Standard | |
Also available with Oil cooling. This cooling leads to motor power reduction.
Also available with grease lubrication. This lubrication leads to speed reduction.
Compare Others Specifications
| Type | TH-170.07 | THN-170.04 | TH-170.09 | TH-190.05 | ||
|---|---|---|---|---|---|---|
| FANUC BUILT-IN SPINDLE MOTOR |
BiI 80M/30000 | BiI 90L/25000 | BiI 90L/25000 TYPE M | BiI 112S/20000-B | ||
| Spindle Ø | 170mm | 170mm | 170mm | 170mm | 190mm | |
| Maximum Speed (Oil-Air) Also available with grease lubrication. This lubrication leads to speed reduction. |
30,000rpm | 20,000rpm | 20,000rpm | 24,000rpm | 20,000rpm | |
| Bore diameter of front bearings | 55mm | 70mm | 65mm | 65mm | 70mm | |
| Rigidity | Axial (N/µm) |
140N/µm | 180N/µm | 150N/µm | 150N/µm | 180N/µm |
| Radial (N/µm) |
150N/µm | 200N/µm | 200N/µm | 200N/µm | 200N/µm | |
| bei Drehzahl | 7,000rpm | 6,000rpm | 6,000rpm | 6,000rpm | 3,200rpm | |
| S1 kW | 11kW | 18.5kW | 18.5kW | 18.5kW | 15kW | |
| S2/S3 kW | 15kW(S2-15min) 18.5kW(S3-25%) |
26kW(S3-25%) | 26kW(S3-25%) | 26kW(S3-25%) | 18.5kW (S2/S3-10mim) |
|
| S1 Torque (Nm) | 15Nm | 29.5Nm | 29.5Nm | 29.5Nm | 44.8Nm | |
| S2/S3 Torque (Nm) | 20.5/23Nm (S2/S3) |
43Nm(S3-25%) | 43Nm(S3-25%) | 43Nm(S3-25%) | 55.2Nm(S2-10mim) 63.1Nm(S3-10mim) |
|
| Tool Interface | HSK-E50 HSK-F63 |
HSK-A63 BBT-40 |
BT-40 BBT-40 |
HSK-A63 HSK-E63 |
HSK-A63 / BBT-40 HSK-C63 |
|
| Spindle Cooling | Water cooling Also available with Oil cooling. This cooling leads to motor power reduction. |
|||||
| Spindle Weight | 58kg | 65kg | 63kg | 63kg | 80kg | |
| Integral Encoder For Closed-Loop Control |
Standard | Standard | Standard | Standard | Standard | |
| Coolant Through Shaft (CTS) | Option | Option | Option | Option | Option | |
| Tool Position Sensors | Proximity switches / Analog sensor | |||||
| Front Bearing Temperature Sensor |
Standard | Standard | Standard | Standard | Standard | |
