THG-150.06 (23kW) D36/63 30,000rpm
Product Information
| Type | THG-150.06 (350V) |
||
|---|---|---|---|
| Spindle Ø | 150mm | ||
| Maximum Speed (Oil-Air) | 30,000rpm | ||
| Bore diameter of front bearings | 65mm | ||
| Rigidity | Axial (N/µm) |
130N/µm | |
| Radial (N/µm) |
200N/µm | ||
| Frequency Max. (Hz) | 1,000Hz | ||
| at speed | 14,700rpm | ||
| S1 kW | 23kW | ||
| S1 Current (A) | 51A | ||
| S6-40% kW | 30kW | ||
| S6-40% Current (A) | 66A | ||
| kW (Peak Power) | 61.2kW | ||

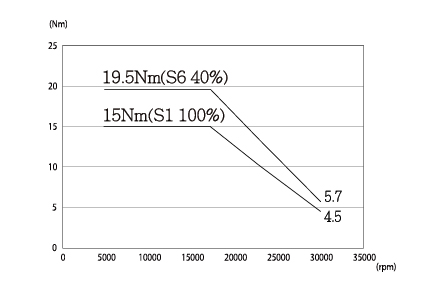

| S1 Torque (Nm) | 15Nm | ||
| S6-40% Torque (Nm) | 19.5Nm | ||
| Tool Interface | D36/63 HSK-C50 |
||
| Spindle Cooling unit | Cooling capacity:6,000Kcal/hr (at25℃) Water cooling /Oil cooling |
||
| Spindle Weight | 55kg | ||
| Integral Encoder For Closed-Loop Control |
Option | ||
| Coolant Through Shaft (CTS) | Option | ||
| Grease Lubrication. | Also available with grease lubrication. This lubrication leads to speed reduction. |
||
| Flange Type | Option | ||
| Interface | K [mm] |
H [mm] |
Grinding wheel E x F [mm] |
G[mm] | Grinding wheel fixation | Ho[mm] |
|---|---|---|---|---|---|---|
| D36/63 | 25 | 50 | 40 X 32 | 16 | Quill with nut | 15 |
| 32 | 63 | 50 X 40 | 20 | 15 | ||
| 50 | 100 | 80 X 40 | 32 | 15 |
Grinding quill with nut
| Maximum Speed | |||||
|---|---|---|---|---|---|
| Tool Interface D36/63 | K | H | |||
| Spindle Type | <80mm | 100mm | 125mm | 160mm | |
| THG-150.06/THG-150.07 | 20mm | 30,000rpm | N/A | N/A | N/A |
| 25mm | 30,000rpm | N/A | N/A | N/A | |
| 32mm | 30,000rpm | 30,000rpm | N/A | N/A | |
| 40mm | 30,000rpm | 27,000rpm | 21,000rpm | N/A | |
| 50mm | 30,000rpm | 24,000rpm | 18,000rpm | 15,000rpm | |
Compare Others Specifications
| Type | THG-150.01(380V) THG-150.03(220V) |
THG-150.02 (400V) |
THG-150.06 (350V) |
THG-150.07 (350V) |
||
|---|---|---|---|---|---|---|
| Spindle Ø | 150mm | 150mm | 150mm | 150mm | 150mm | |
| Maximum Speed (Oil-air lubrication) |
36,000rpm | 24,000rpm | 42,000rpm | 30,000rpm | 30,000rpm | |
| Bore diameter of front bearings | 50mm | 65mm | 40mm | 65mm | 65mm | |
| Rigidity | Axial (N/µm) |
130N/µm | 130N/µm | 90N/µm | 130N/µm | 130N/µm |
| Radial (N/µm) |
150N/µm | 200N/µm | 120N/µm | 200N/µm | 200N/µm | |
| Frequency Max. (Hz) | 1,200Hz | 800Hz | 1,400Hz | 1,000Hz | 1,000Hz | |
| at speed | 13,500rpm | 13,500rpm | 17,600rpm | 14,700rpm | 20,700rpm | |
| S1 kW | 15kW | 15kW | 10kW | 23kW | 33kW | |
| S6-40% kW | 20kW | 20kW | 13kW | 30kW | 43kW | |
| kW (Peak Power) | 50kW | 50kW | 25kW | 61.2kW | 98.1kW | |
| S1 Torque (Nm) | 10.6Nm | 10.6Nm | 5.4Nm | 15Nm | 15.2Nm | |
| S6-40% Torque (Nm) | 14.1Nm | 14.1Nm | 7.1Nm | 19.5Nm | 19.8Nm | |
| Tool Interface | D28/43 HSK-C40 |
D36/63 HSK-C50 |
D22/38 HSK-C32 |
D36/63 HSK-C50 |
D36/63 HSK-C50 |
|
| Spindle Cooling | Water cooling /Oil cooling | |||||
| Spindle Weight | 43kg | 43kg | 43kg | 55kg | 55kg | |
| Integral Encoder For Closed-Loop Control |
Option | Option | Option | Option | Option | |
| Coolant Through Shaft (CTS) | Option | Option | Option | Option | Option | |
| Grease Lubrication. | Also available with grease lubrication. This lubrication leads to speed reduction. |
|||||
| Flange Type | Standard | Standard | Standard | Option | Option | |
