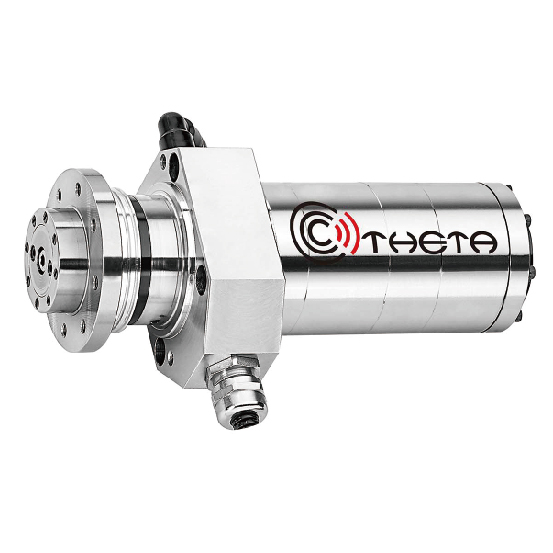

THGA-60.01 (0.45kW) 24,000rpm
Product Information
| Type | THGA-60.01 (220V) |
||
|---|---|---|---|
| Spindle Ø | 60mm | ||
| Built-in Spindle Motor | Asynchronous motor | ||
| Maximµm Speed |
Grease | N/A | |
| Oil-Air | 24,000rpm | ||
| Frequency Max. (Hz) | 400Hz | ||
| at speed | 19,600rpm | ||
| S1 kW | 0.45kW | ||
| S1 Current (A) | 1.5A | ||
| S1 Torque (Nm) | 0.21Nm | ||
| Tool Interface/ Grinding Wheel Flange |
External Taper 1/5 | ||
| Grinding Wheel Flange Contact Face Φ56mm |
|||
| Grinding Wheel Flange Centering Φ40mm |
|||
| Rotational Direction | Left or Right | ||
| Spindle Cooling | N/A | ||
| Spindle Weight | 3kg | ||
| Integral Encoder For Closed-Loop Control |
N/A | ||
| Built-In AE Sensor | N/A | ||
| Grease Lubricated | N/A | ||
| Flange Type | Standard | ||
Compare Others Specifications
| Type | THGA-V50.01 (200V) |
THGA-60.01 (220V) |
THGL-60.01 (130V) |
|
|---|---|---|---|---|
| Spindle Ø | 49.5mm | 60mm | 60mm | |
| Built-in Spindle Motor | Asynchronous motor | |||
| Maximµm Speed | Grease | N/A | N/A | 12,000rpm |
| Oil-Air | 18,000rpm | 24,000rpm | N/A | |
| Frequency Max. (Hz) | 334Hz | 400Hz | 200Hz | |
| at speed | 18,000rpm | 19,600rpm | 11,700rpm | |
| S1 kW | 0.1kW | 0.45kW | 0.26kW | |
| S1 Torque (Nm) | 0.05Nm | 0.21Nm | 0.21Nm | |
| Tool Interface/ Grinding Wheel Flange |
M6 X P1.0 | External Taper 1/5 | ||
| N/A | Grinding Wheel Flange Contact Face Φ 56mm |
|||
| Shaft Ø 12mm |
Grinding Wheel Flange Centering Φ 40mm |
|||
| Rotational Direction | Left or Right | |||
| Spindle Cooling | N/A | N/A | N/A | |
| Spindle Weight | 2.2kg | 3kg | 4kg | |
| Integral Encoder For Closed-Loop Control |
N/A | N/A | N/A | |
| Built-In AE Sensor | N/A | N/A | N/A | |
| Grease Lubricated | N/A | N/A | Standard | |
| Flange Type | Standard | Standard | N/A | |
